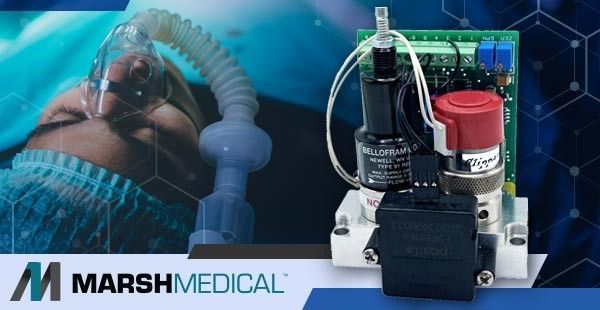

Crafted for peak performance in medical devices, the T4000 Proportional Electronic Flow and Pressure Controls seamlessly integrate sensors, command signal scaling, and valves ensuring unparalleled precision. Whether employing analog command signals or the digital MODBUS RTU interface, the T4000 effortlessly adapts for meticulous control. Customize your analog output to align with setpoint, remote sensor, or output values, all with the flexibility of forward or reverse action.

The T4000 accommodates space constraints with manifold or DIN tray mounting options. You can also opt for an integrated mechanical pressure regulator for improved flow control, along with the choice of a non-relieving function (no exhaust valve) for pressure control. With pressure ranges up to 100 psi and flow ranges reaching 6 L/min, the T4000 Series adds versatility to cutting-edge medical solutions. Additional features include:


• Second loop feedback
• Proportional operation
• Analog output, 0-10V or 0-5V
• 0.25% accuracy full scale (pressure)
• 2.0% accuracy full scale (flow)
• +24Vdc or +12Vdc supply options

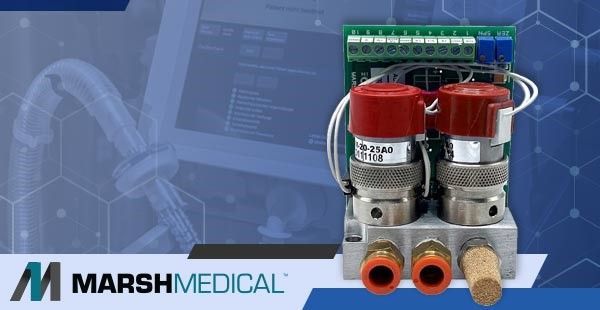

Compact yet powerful, the T3100 Series Circuit-Card Pressure Regulators are meticulously designed for medical applications. These small electropneumatic regulators control pressure with a remarkable accuracy of +/-0.5% FS. Convenient screw terminal wiring and front-facing jumper selection simplify command input configuration, while the output can be fine-tuned with a small screwdriver.

Two electrical outputs enable direct monitoring of output pressure from the 0-10V AO terminal and unit operation from the TTL terminal. The T3100 Series offers a small footprint, easy adjustments and minimal air consumption, ensuring precision and reliability. With a wide variety of output pressure options and the ability to be O2 clean, it’s an ideal choice for numerous medical device applications.


• Second loop feedback (T3120)

• On-off operation

• Analog or logic output

• 0.5% accuracy full scale

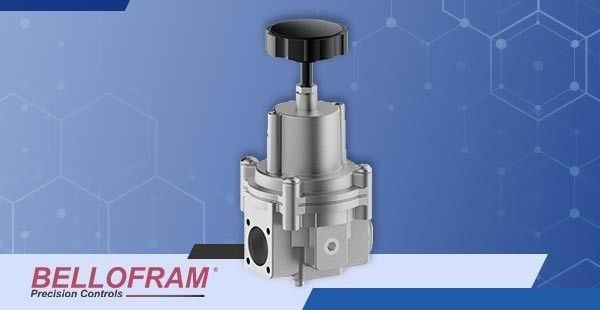

An ideal fit for medical devices and environments where space is at a premium, the T42 High Flow Air Pressure Regulator retains the best elements of its predecessor, the T70, for applications that require substantial flow capacity and accurate pressure controls.

With its compact size, reduced weight, and future cartridge style design, the T42 maintains the flow of 200 liters per minute and offers many other additional benefits, including:

• .009 psi sensitivity
• 250 psi supply pressure max
• 150 to 300 L/min flow rates
